The goal of tmaRks is to extract and compare signatures from three dimensional topographic scans of screwdriver marks.

Installation

You can install the development version of tmaRks from Github:

remotes::install_github("heike/tmaRks")

Example

library(tmaRks)
library(tidyverse, quietly = TRUE)
library(patchwork)
## basic example code

We have provided a sample data set of tool marks created by a total of 23 different screw drivers. This data is available as object toolmarks.

data(toolmarks)
head(toolmarks)
#> # A tibble: 6 × 11
#>    tool size  side  direction angle  mark TID            x     y   value signa…¹
#>   <int> <chr> <chr> <chr>     <int> <int> <chr>      <dbl> <dbl>   <dbl>   <dbl>
#> 1     1 S     A     F            80     1 T01SA-F80…  2.00  3.62 -0.0816 0.00195
#> 2     1 S     A     F            80     1 T01SA-F80…  2.01  3.62 -0.0816 0.00193
#> 3     1 S     A     F            80     1 T01SA-F80…  2.02  3.62 -0.0816 0.00184
#> 4     1 S     A     F            80     1 T01SA-F80…  2.02  3.62 -0.0817 0.00173
#> 5     1 S     A     F            80     1 T01SA-F80…  2.03  3.62 -0.0817 0.00166
#> 6     1 S     A     F            80     1 T01SA-F80…  2.04  3.62 -0.0817 0.00157
#> # … with abbreviated variable name ¹​signature

Marks are distinguished by their Tool ID (TID), which has the general form of Tool number (1-20), size (S, M, L), side (A,B), followed by direction (F,B) and angle, and finally the replicate (1-8):

sample(unique(toolmarks$TID), size=5)
#> [1] "T01SA-B80-02" "T01LA-F70-02" "T11SB-F80-05" "T06SA-F80-06" "T05SA-F80-07"

For side A of the first small screw driver, we have a total of 8 marks made under an angle of 80 degrees in forward direction. Each mark consists of a signature of length 667:

toolmarks %>% slice(grep("^T01SA-F80",TID)) %>% count(TID)
#> # A tibble: 8 × 2
#>   TID              n
#>   <chr>        <int>
#> 1 T01SA-F80-01   667
#> 2 T01SA-F80-02   667
#> 3 T01SA-F80-03   667
#> 4 T01SA-F80-04   667
#> 5 T01SA-F80-05   667
#> 6 T01SA-F80-06   667
#> 7 T01SA-F80-07   667
#> 8 T01SA-F80-08   667

Each of the marks is represented by a profile (value) - derived from a suitable crosscut across the striations visible in a scan.

t1sa <- toolmarks %>% slice(grep("^T01SA",TID))
t1sa %>%
  ggplot(aes(x = x, y = value)) + geom_line(aes(group = TID, colour = direction)) +
  ggtitle("Profiles of tool1 marks under an angle of 80 degrees")

While we can see some similarities between the profiles,
the dominant structures in them are associated with the procedures of getting the marks (both in creating the marks: adjustment of the screw driver in the rig; and in retrieving the marks with a hand-held scanner: slightly uneven pressure in the surface capture).

t1sa %>%
  ggplot(aes(x = x, y = signature)) + geom_line(aes(group = TID, colour = direction)) +
  ggtitle("Signatures of tool1 marks under an angle of 80 degrees") +
  ylim(c(-0.012, 0.012))
#> Warning: Removed 13 rows containing missing values (`geom_line()`).

The procedure for extracting signatures from profiles is susceptible to edge effects:

t1sab80_2 <- t1sa %>%
  filter(TID == "T01SA-B80-02")

t1sab80_2_sub <- t1sa %>%
  filter(TID == "T01SA-B80-02", x < 6.3)
res <- tmaRks::cc_get_signature(t1sab80_2) # trimmed again, not even using the reduced profile

t1sab80_2 %>%
  ggplot(aes(x = x, y = value)) +
  geom_line(aes(group = TID, colour = "profile")) +
  ggtitle("T01SA-B80-02 - profile and signatures") +
  geom_line(aes(y = signature, group = TID, colour = "signature-full")) +
  geom_line(aes(y = sig, colour = "signature-reduced"), data = res)
#> Warning: Removed 129 rows containing missing values (`geom_line()`).

The similarities between marks are stronger for the signatures than the profiles, but the signatures are not aligned well laterally (because of the scanning procedure).

For aligning signatures, we single out one signature, then align with respect to that signature using the maximized cross-correlation:

Aligning the marks separately by direction:

t1saf <- t1sa %>% filter(direction == "F") %>%
  sig_align_set(signature, group=mark, min.overlap = 400)

t1sab <- t1sa %>% filter(direction == "B") %>%
  sig_align_set(signature, group=mark, min.overlap = 400)
ggf <- t1saf %>%
  ggplot(aes(x = aligned_x, y = signature, group = TID)) +
  geom_line() +
  ggtitle("Forward direction (aligned to T01SA-F80-01)")
ggb <- t1sab %>%
  ggplot(aes(x = aligned_x, y = signature, group = TID)) +
  geom_line() +
  ggtitle("Backward direction (aligned to T01SA-B80-01)") +
  ylim(c(-0.012, 0.012))

ggf/ggb
#> Warning: Removed 13 rows containing missing values (`geom_line()`).

Aligning the marks together shows that the local minima and maxima align better than expected at first glance:

t1sa <- t1sa %>%
  sig_align_set(signature, group=interaction(mark, direction), min.overlap = 400)

t1sa %>%
  ggplot(aes(x = aligned_x, y = signature, group = TID)) +
  geom_line(aes(colour = direction)) +
  ggtitle("All signatures aligned with respect to T01SA-F80-01") +
  ylim(c(-0.012, 0.012))
#> Warning: Removed 13 rows containing missing values (`geom_line()`).

While there are strong similarities between signatures made by using the same side of a tool in different directions, there are also pronounced differences visible between the two sets of signatures.

Hierarchical approach to alignment

It is not always advisable or even possible to align all signatures to the same signature.

sig_align_set aligns all signatures in data to the first signature as identified by the levels of the group structure.

# Align the first mark of the backwards direction to the first mark in the forward direction
firsts <- t1sa %>% filter(mark==1) %>%
  sig_align_set(signature, group=direction, min.overlap = 400)

Then use this alignment to figure out the shift between the forward group and the backward group.

aligned_wide <- firsts %>% group_by(TID) %>% arrange(x) %>% mutate(x = 1:n()) %>% ungroup() %>%
  select(x, TID, aligned_x) %>%
  pivot_wider(values_from = aligned_x, names_from = TID)
lags_wide <- aligned_wide %>%
  summarize(across(starts_with("T01"), .f = function(col) unique(col - x))) %>%
  pivot_longer(starts_with("T01"), names_to="TID", values_to="lag")

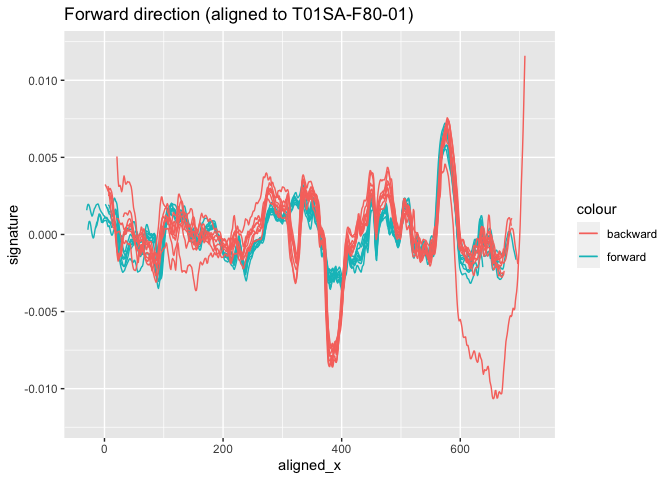

t1saf %>%
  ggplot(aes(x = aligned_x, y = signature, group = TID)) +
  geom_line(aes(colour = "forward")) +
  ggtitle("Forward direction (aligned to T01SA-F80-01)") +
  geom_line(aes(x = aligned_x+lags_wide$lag[2], colour = "backward"), data = t1sab) +
  ylim(c(-0.012, 0.012))
#> Warning: Removed 13 rows containing missing values (`geom_line()`).

  1. Align by set


reps <- toolmarks %>% filter(tool <= 3, size == "L") %>% group_by(tool, side, size) %>%
  tidyr::nest()
reps <- reps %>% mutate(
  data = data %>% purrr::map(sig_align_set, value=signature, group = mark, min.overlap = 500)
) %>% tidyr::unnest(cols=data)
  1. Visualize
reps <- reps %>%
  unite("id", tool, side, size, remove = FALSE) %>%
  mutate(
  plot = purrr::map2(aligned_set, id, .f = function(d, id) {
    gg <- d %>% ggplot(aes(x = aligned_x, y = signature, colour = factor(mark))) + geom_line() +
      theme_bw() +
      ggtitle(id[1]) +
      theme(legend.position="none")
    gg
  })
)

marks_01_A_S <- reps %>% filter(tool==01, side=="A", size=="S")

length(reps$data)

dim(reps$data[[1]])

table(reps$data[[1]]$direction)
table(reps$data[[2]]$direction)


table(reps$data[[3]]$angle)


reps$data[[3]]$angle



dim(marks_01_A_S$data[1])


str(reps)
names(reps)




table(reps$tool)
table(reps$side)
table(reps$size)

reps$data[[1]]$y

reps$



#reps$aligned_set[[3]] %>% summary()
#reps$aligned_set[[3]] %>% names()
#reps[3,]

library(readr)
saveRDS(reps, "data/reps.rds")

reps <- readRDS("data/reps.rds")






library(gridExtra)
do.call(marrangeGrob, list(reps$plot[1:8], nrow=4, ncol=2))


ml = do.call(marrangeGrob, list(reps$plot, nrow=4, ncol=2))
ggsave(plot=ml, filename="figures/multipage.pdf")

Download pdf with multiple pages of figures.

The steps so far are:

  1. Convert stl files to x3p files and save in an appropriate folder
stls <- dir(pattern="stl", path="data/stl_files", full.names = TRUE)


for (file in stls) {
  stl_tool <- rgl::readSTL(file, plot=FALSE)
  x3p <- stl_to_x3p(stl_tool)
  x3p %>% x3p_write(file = gsub(".stl", ".x3p", file)) # not that this will re-name EVERY x3p by stl, i.e. no need to deal with stl_files to x3p_files separately
}
  1. Function assert_name_pattern(files, pattern) checks all file names in vector files for compliance with the pattern given in pattern.

  • signature extraction – I’m just filtering the signal from a set value of x to another. I bet this makes it so we lose some of the signal, but it’s simple. adding metadata –– So far I haven’t run this code, so the x3p files don’t have the correct metadata. Nina made a spreadsheet with this information, so all it would take is to run it, but it’s slow.

  • aligning signatures –– I’m still doing this my initial way instead of using your “tmaRks” way because I added a piece in which all marks are the same length, 900 points, with NA fillers on either side. I figured this would make modeling easier. One thing I haven’t done is to align the signals based on two criteria: the subset by tool (marks at different angles) and then by angle. When I tried aligning the marks made at different angles the alignment didn’t look good.

  • binning –– So far I’ve done this by choosing an arbitrary number of bins (18, so that each bin has 50 points in it). It would be nice if I could just change that number easily, e.g. b=22, and then the code would just run. The way it’s written now it’s way too dependent on the 18 bins.

  • modeling –– The main task here has been calculating means by tool, and then the variance across tools. I couldn’t figure out how to do this in general so you’ll see it’s quite specific.

One more point: - concatenating sides –– I’d like to start doing the whole analysis by using the signals from sides A and B of each tool concatenated. I think that is a more honest description of what the data are. That would have to be done after aligning, I think.
